Has anyone ever ran 6-1 headers on a lc torana.

Im building my motor using the old johno web site with the as my guide.




The Scream - 250hp+ (for a quicker revving variation on this one try a blue 173 block bored for 186 pistons and 3" crank)
Blue/Black 202 block
Blue/Black 3.25" crank
Blue/black rods
11:1 - 11.5:1 compression
Professionally ported 12 port head w 1.75" and 1.48" valves, or ported YellaTerra 12 port
Fabricated tuned-length IR manifold w/ six Mikuni HSR42s
245 to 250deg @ 0.050" 0.5" to 0.550" lift solid cam
Shaft mount roller rockers
HEI or better ignition (or better still, crank triggered)
1.625" x 28" primary pipe extractors with a single 3" x 15" collector



I have found this to start my header building.


Mission impossible........You think it will work? What you guys think



#2 N/A-PWR

N/A-PWR

    CABIN ENGINE CONTROLS GALORE

  • Members
  • PipPipPipPipPipPipPip
  • 9,637 posts
  • Name:Dave I
  • Location:Wooroloo, 65km's East of Perth
  • Car:'1969' LC RAT TORANA
  • Joined: 08-December 12

Posted 25 April 2014 - 08:37 PM

Hi Matthew,

I did hear in the past, that the tuned Exhaust was the way to go, so in this case, you would need all pipes the same length before the collector. Dave I



#3 _Bomber Watson_

_Bomber Watson_
  • Guests

Posted 25 April 2014 - 09:34 PM

Sadly, although it would be awesome, i recon you have nill and buckly's of getting six pipes down beside the engine.



Cheers.



#4 N/A-PWR

N/A-PWR

    CABIN ENGINE CONTROLS GALORE

  • Members
  • PipPipPipPipPipPipPip
  • 9,637 posts
  • Name:Dave I
  • Location:Wooroloo, 65km's East of Perth
  • Car:'1969' LC RAT TORANA
  • Joined: 08-December 12

Posted 25 April 2014 - 09:35 PM

you could go a bit further DJ hey



#5 looznugtr

looznugtr

    Forum Fixture

  • Members
  • PipPipPipPipPip
  • 528 posts
  • Name:Matthew
  • Location:Vic / Werribee
  • Car:2/70 LC gtr 2600s
  • Joined: 26-November 12

Posted 25 April 2014 - 10:04 PM

The collector could stir higher and a 3 inch could pass no worries. Iv had 6 pipes to a turbo and then a dump pipe down low before.

#6 N/A-PWR

N/A-PWR

    CABIN ENGINE CONTROLS GALORE

  • Members
  • PipPipPipPipPipPipPip
  • 9,637 posts
  • Name:Dave I
  • Location:Wooroloo, 65km's East of Perth
  • Car:'1969' LC RAT TORANA
  • Joined: 08-December 12

Posted 25 April 2014 - 10:14 PM

Very Nice Mathew,

any pictires



#7 warrenm

warrenm

    Forum Fixture

  • Members
  • PipPipPipPipPip
  • 2,117 posts
  • Location:Central West NSW
  • Car:1972 LJ Torana
  • Joined: 08-November 05
Garage View Garage

Posted 26 April 2014 - 07:23 AM

I know these are not 6 into 1 but it may give you some insight as to what may be involved into fitting a large collector beside a 6 in an LC/LJ. To fit these beside the motor I'm unable to use a winged sump. Not saying it can't be done, but it will be very busy between the chassis rail & motor.

Attached File  Headers (600 x 436).jpg   55.32K   14 downloads



#8 Dave6179

Dave6179

    Forum Fixture

  • Members
  • PipPipPipPipPip
  • 577 posts
  • Name:David
  • Location:NZ
  • Car:HJ, VN, VX SS
  • Joined: 23-August 12

Posted 26 April 2014 - 03:15 PM

I made a set for my HJ. Sounded totally different... read awsome, but created a LOT of heat, even after wrapping them! I swapped for a set of two piece PaceMakers, and the performance was almost the same, 6-1 had slightly more down low.

My collector was basically 3 on 3, as in flat, not six in a circle, and I made merge points too. I also used the firing order, 153 on top left to right, the 624 on the bottom, right to left, to give it some swirl. And the pipes were all less than a 1/4 inch different in length. No, I didn't take any pics!

They are still screwed to the garage wall.



#9 _Bomber Watson_

_Bomber Watson_
  • Guests

Posted 26 April 2014 - 03:49 PM

THeres also about four square kilometers more room in a H series.



OP, im doubtfull, but go for it.



Prove me wrong :D I will be delighted if you do.



Cheers.



#10 Dave6179

Dave6179

    Forum Fixture

  • Members
  • PipPipPipPipPip
  • 577 posts
  • Name:David
  • Location:NZ
  • Car:HJ, VN, VX SS
  • Joined: 23-August 12

Posted 27 April 2014 - 12:49 PM

Yeh, lotsa room certainly helps! I kept the 'pack' as tight as possible though, didn't want it looking like a plumbers nightmare!



#11 lakeside

lakeside

    Lotsa Posts!

  • Members
  • PipPipPipPipPipPip
  • 2,703 posts
  • Name:Col
  • Location:melb
  • Car:LC SBC
  • Joined: 07-November 05

Posted 29 April 2014 - 07:22 AM

My 202 made 300hp with these pipes. In street trim it ran 12.7@109mph in a lc gtr



#12 looznugtr

looznugtr

    Forum Fixture

  • Members
  • PipPipPipPipPip
  • 528 posts
  • Name:Matthew
  • Location:Vic / Werribee
  • Car:2/70 LC gtr 2600s
  • Joined: 26-November 12

Posted 29 April 2014 - 01:41 PM

What's the primary's on those headers and what make? I'm assuming 9 port head?

#13 looznugtr

looznugtr

    Forum Fixture

  • Members
  • PipPipPipPipPip
  • 528 posts
  • Name:Matthew
  • Location:Vic / Werribee
  • Car:2/70 LC gtr 2600s
  • Joined: 26-November 12

Posted 29 April 2014 - 05:07 PM

What's the primary's on those headers and what make? I'm assuming 9 port head?

#14 lakeside

lakeside

    Lotsa Posts!

  • Members
  • PipPipPipPipPipPip
  • 2,703 posts
  • Name:Col
  • Location:melb
  • Car:LC SBC
  • Joined: 07-November 05

Posted 29 April 2014 - 05:43 PM

Matt, they are a custom set for a 9port. I'm not sure on the sizes but a lot bigger than off the self.

#15 N/A-PWR

N/A-PWR

    CABIN ENGINE CONTROLS GALORE

  • Members
  • PipPipPipPipPipPipPip
  • 9,637 posts
  • Name:Dave I
  • Location:Wooroloo, 65km's East of Perth
  • Car:'1969' LC RAT TORANA
  • Joined: 08-December 12

Posted 29 April 2014 - 09:21 PM

here you go:-




http://www.oldjohnno.id.au/page34.html

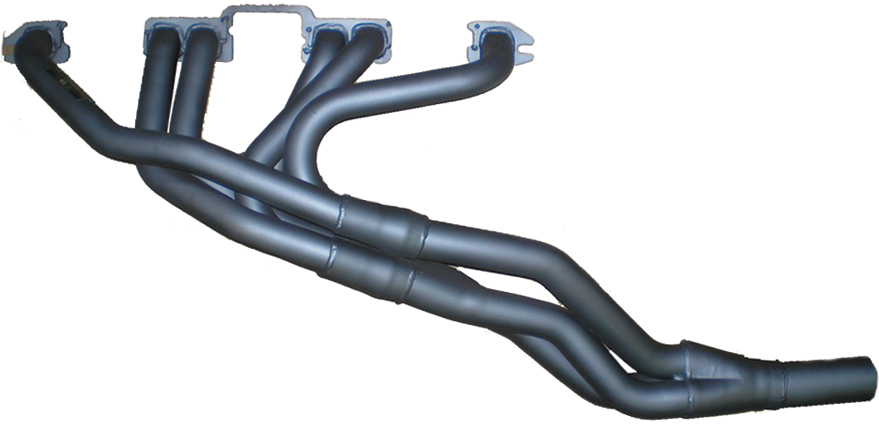

and these below are on eBay now at $435 but Primaries are only 1 1/2" instead of 1 5/8":-



$T2eC16NHJIIE9qTYI1vNBRSUHlNFQ!~~60_57.J

http://www.ebay.com....S-/251319650509


Edited by TORYPOWER, 29 April 2014 - 09:31 PM.


#16 _Bomber Watson_

_Bomber Watson_
  • Guests

Posted 29 April 2014 - 09:29 PM

Very similar to the pipes i have for my car.



From what i gather good for peak hp, if the lenghs are right of course, chances are they arnt,  but give a pretty narrow rpm band.



Cheers.



#17 N/A-PWR

N/A-PWR

    CABIN ENGINE CONTROLS GALORE

  • Members
  • PipPipPipPipPipPipPip
  • 9,637 posts
  • Name:Dave I
  • Location:Wooroloo, 65km's East of Perth
  • Car:'1969' LC RAT TORANA
  • Joined: 08-December 12

Posted 29 April 2014 - 09:40 PM

and these are what I used, and I had huge pick-up ( Spooling ):-




http://www.ebay.com....-/171295873354?



but, all this needs a good breathing motor to go with them. Dave I



the second bit, curved around the back of the M22 Gearbox



and was very loud, lovely pipes, and these are 6 into 1 pipes too.



I also ran a Turbo smooth 'S' bend muffler


Edited by TORYPOWER, 29 April 2014 - 09:44 PM.


#18 _Bomber Watson_

_Bomber Watson_
  • Guests

Posted 29 April 2014 - 09:44 PM

No there 6-2-1's.



the ones you posted just above in post # 15 are 6-3-1's.



6-1's have no secondary pipes, all the primary pipes feed into one collector then into the tailpipe.



By my limited knowlege, 6-1's set up properly will give the widest torque curve but lower peak hp, 6-2-1 will give a medium, and properly set up 6-3-1's will give you max peak hp but a narrow torque curve.



But im happy to be corrected.



Cheers.



#19 N/A-PWR

N/A-PWR

    CABIN ENGINE CONTROLS GALORE

  • Members
  • PipPipPipPipPipPipPip
  • 9,637 posts
  • Name:Dave I
  • Location:Wooroloo, 65km's East of Perth
  • Car:'1969' LC RAT TORANA
  • Joined: 08-December 12

Posted 29 April 2014 - 09:50 PM

OK then,

the Hurricane's are ( 3 into 1 + 3 into 1 )  and 2 into 1

thank's for correcting me DJ



#20 _Bomber Watson_

_Bomber Watson_
  • Guests

Posted 29 April 2014 - 09:56 PM

Bingo, you got it now.



I just call that 6-2-1 to make it simple....Probably not the correct term though, the way you spelt it out is probably more correct.



Cheers.


Edited by Bomber Watson, 29 April 2014 - 09:57 PM.


#21 _gorto_

_gorto_
  • Guests

Posted 29 April 2014 - 09:59 PM

I have an old book somewhere, it goes into deep detail about exhausts. Info about equal length runners, formula for optimum lengths etc. Very interesting will have to find it..



#22 _gorto_

_gorto_
  • Guests

Posted 29 April 2014 - 11:25 PM

Here is a set of 6 into 1's off a hemi for reference.




#23 N/A-PWR

N/A-PWR

    CABIN ENGINE CONTROLS GALORE

  • Members
  • PipPipPipPipPipPipPip
  • 9,637 posts
  • Name:Dave I
  • Location:Wooroloo, 65km's East of Perth
  • Car:'1969' LC RAT TORANA
  • Joined: 08-December 12

Posted 29 April 2014 - 11:32 PM

 Great Find Ryan,

was looking at Hemi's myself and thinking why is their stuff different. Dave I



#24 Dave6179

Dave6179

    Forum Fixture

  • Members
  • PipPipPipPipPip
  • 577 posts
  • Name:David
  • Location:NZ
  • Car:HJ, VN, VX SS
  • Joined: 23-August 12

Posted 13 June 2016 - 01:17 PM

I've just refitted mine. Thought the PMs had sprung a leak... turned out the gasket was the one without the port bridge section. Both ports leaking.

The 6-1 feel so much more refined, easier to rev, smoother from idle.



Attached Files



#25 warrenm

warrenm

    Forum Fixture

  • Members
  • PipPipPipPipPip
  • 2,117 posts
  • Location:Central West NSW
  • Car:1972 LJ Torana
  • Joined: 08-November 05
Garage View Garage

Posted 13 June 2016 - 05:22 PM

Nice pipes. Any particular reason for the short collector?
