#51 _WantOneNow!_

_WantOneNow!_
  • Guests

Posted 03 May 2011 - 06:03 PM

I believe they are sienna trim, but I don't know the code sorry.
Cheers Mick.

#52 _sloper35_

_sloper35_
  • Guests

Posted 06 May 2011 - 06:34 PM

67V is Tan vinyl with Tan vinyl insert on SL, but 67V is Tan Vinyl with Gazelle Golfball vinyl insert on SLR. I guess this is a fairly unusual trim combination. Should also have Gazelle in the door trims as an insert. Everything else was Tan. 64V switched the colours so Tan was the insert and the rest a mixture of Tan and Gazelle.

#53 _3300SLRLH_

_3300SLRLH_
  • Guests

Posted 29 July 2011 - 08:39 PM

I got a 74 lh slr with interior code 66X found out it is Chestnut vinyl with cloth inserts but didn't know what the cloth was till Steve @ Cools Trim told me it was Heringbone , the door trims have golf ball which are still in tac but I need to find Chestnut vinyl enough to do 2 buckets seeing I was stupid and re covered them when I was younger like 10 years ago and now I want original in my old age if anyone could help that would be great

#54 _3300SLRLH_

_3300SLRLH_
  • Guests

Posted 30 July 2011 - 06:34 PM

Posted Image
hope this pic works sorry for not posting one before but here goes if it works 1881-66X Vin - 8VD69LDJ43885H

#55 _sloper35_

_sloper35_
  • Guests

Posted 30 July 2011 - 08:40 PM

Spud this is a good illistration of the early style Herringbone cloth. Introduced in early 1973 on LJ it was found to not wear too good and was changed to a US imported Herringbone cloth. The difference being the the coloure stripe do not line up.
One with the lable is the early one. Would appreciate you posting you car build month so I can narrow the changeover date

Attached Files


#56 _Puds22_

_Puds22_
  • Guests

Posted 04 November 2011 - 03:45 PM

Some guy wants to sell me his lj and it needs retraining can I see a picture of the trim: 1370-59R

#57 _sloper35_

_sloper35_
  • Guests

Posted 04 November 2011 - 04:02 PM

59R is Chestnut vinyl, 59R also means you have chestnut headliner, carpet, facias, seat backs, etc.

Attached Files


#58 hanra

hanra

    Oh My, Don't you post alot

  • Members
  • PipPipPipPipPipPipPip
  • 10,915 posts
  • Name:Brad
  • Location:Farrrrrr North Qld
  • Car:1975 LH SL/R 5000, 1967 Morris Cooper S, E36 BMW, Toyota Corolla, Isuzu DMax
  • Joined: 24-March 11

Posted 04 November 2011 - 04:36 PM

-60Y in LH being Chamois Vinyl, Chevron Cloth and Covert Carpet. Covert Carpet is confirmed NLA from all major carpet suppliers. Buckskin is the closest. Also good luck on finding Chevron Cloth

Posted Image

Posted Image

Posted Image

#59 _sloper35_

_sloper35_
  • Guests

Posted 04 November 2011 - 05:22 PM

This is 59X main difference being the Black Steering wheel.

Attached Files


#60 _sunburst73-xu1_

_sunburst73-xu1_
  • Guests

Posted 04 November 2011 - 06:34 PM

And under dash
Attached File  pic6.jpg   62.03K   7 downloads

#61 A9X

A9X

    A fortunate run

  • Members
  • PipPipPipPipPipPipPip
  • 5,024 posts
  • Name:Welby
  • Location:Perth
  • Joined: 09-November 05
Garage View Garage

Posted 16 December 2011 - 07:18 PM

Any one able to show me 1408 - 60 W
definately a W - 9/75 LH Sedan

#62 A9X

A9X

    A fortunate run

  • Members
  • PipPipPipPipPipPipPip
  • 5,024 posts
  • Name:Welby
  • Location:Perth
  • Joined: 09-November 05
Garage View Garage

Posted 16 December 2011 - 07:25 PM

67V is Tan vinyl with Tan vinyl insert on SL, but 67V is Tan Vinyl with Gazelle Golfball vinyl insert on SLR. I guess this is a fairly unusual trim combination. Should also have Gazelle in the door trims as an insert. Everything else was Tan. 64V switched the colours so Tan was the insert and the rest a mixture of Tan and Gazelle.



Hi Norm

Can you show me a pic of the difference between tan and gazelle?

Thanks.

#63 _sloper35_

_sloper35_
  • Guests

Posted 23 December 2011 - 02:04 PM

60W is only on SL and S and is Chamois with Covert carpet, rear compt shelf, facia and crash pad.

Gazelle and Tan trim attached. Not much difference.
Once you have a copy of Torana Tough in your hands just go to pages 178-183 and all trims will be laid out for LH
Attached File  LH Trim 64Y Gazelle.jpg   29.83K   6 downloadsAttached File  Tan trim.JPG   58.42K   6 downloads

#64 A9X

A9X

    A fortunate run

  • Members
  • PipPipPipPipPipPipPip
  • 5,024 posts
  • Name:Welby
  • Location:Perth
  • Joined: 09-November 05
Garage View Garage

Posted 23 December 2011 - 07:19 PM

thanks Norm.

Any idea who is able to remake trhe door trims with wood panel insert?

#65 _sloper35_

_sloper35_
  • Guests

Posted 23 December 2011 - 07:28 PM

Have a talk to Gary Rimmer at Eastern Automotive Upholstery
Unit 5/200 Canterbury Rd, Bayswater, VIC 3153
East VICp: (03) 97205444
He has one of Holdens full size Dielectric welding machines and makes a number of door trim panels. He also has some NOS vinyl.

#66 A9X

A9X

    A fortunate run

  • Members
  • PipPipPipPipPipPipPip
  • 5,024 posts
  • Name:Welby
  • Location:Perth
  • Joined: 09-November 05
Garage View Garage

Posted 23 December 2011 - 07:29 PM

Thanks Norm

#67 kingsly

kingsly

    Forum Member

  • Members
  • PipPipPip
  • 235 posts
  • Location:Adelaide
  • Joined: 10-July 08

Posted 14 January 2012 - 08:22 PM

Hey guys just looking at the plates on my LH the trim code reads - 1888-64W. Which i came the the conclusion that its a Gazelle interior would that be correct. its a 74 'S'. That would also mean column auto and no rear arm rests?

#68 Swarbs

Swarbs

    Forum Fixture

  • Members
  • PipPipPipPipPip
  • 1,668 posts
  • Name:Dave
  • Location:North West WA
  • Car:LX 5000
  • Joined: 18-April 07

Posted 24 February 2012 - 02:09 PM

LX 18V
Taken off the Ebay black A9X


Posted Image


Posted Image

Please correct me if i'm wrong

#69 _KirstyAnne_

_KirstyAnne_
  • Guests

Posted 09 April 2012 - 08:09 PM

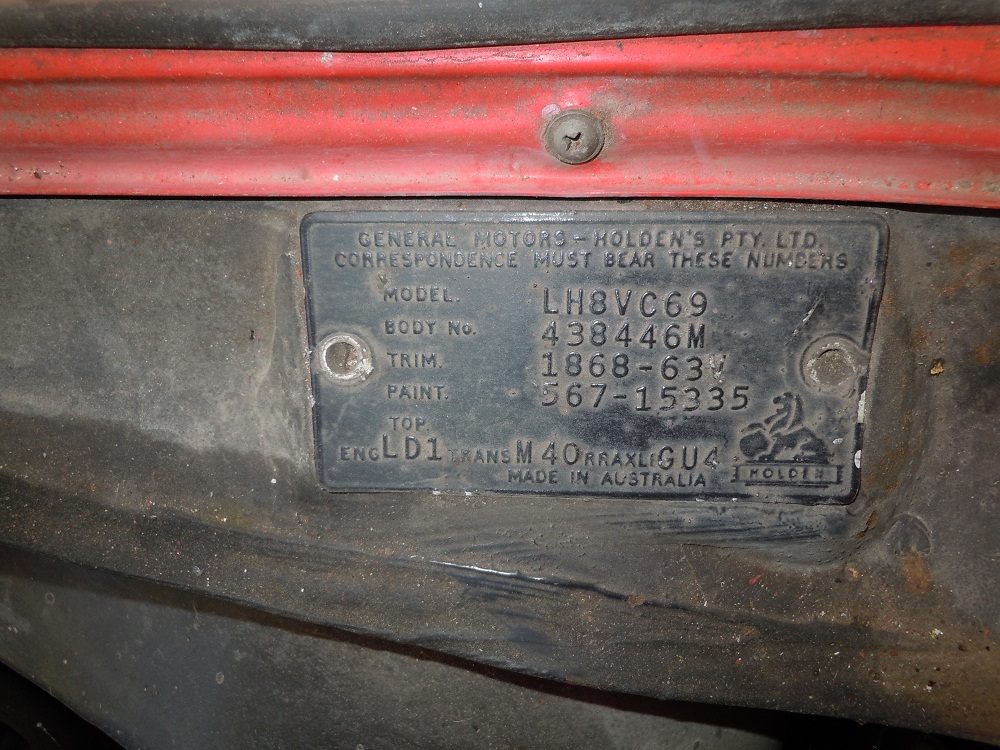

1868- LX VC 63V
Doeskin Vinyl/ Black

This is my original car interior! yet to start repairs :(


Edited by Statler, 13 March 2017 - 01:43 PM.

#70 dattoman

dattoman

    Do I feel lucky? Well, do ya, punk?

  • Administrators
  • PipPipPipPipPipPipPip
  • 16,485 posts
  • Name:Neil
  • Location:Perth Western Australia
  • Car:LX SS , 76 Cadillac , 3 x dattos
  • Joined: 04-February 07

Posted 09 April 2012 - 11:33 PM

http://www.gmh-toran...__fromsearch__1


Posted Image

#71 _sloper35_

_sloper35_
  • Guests

Posted 10 April 2012 - 09:18 AM

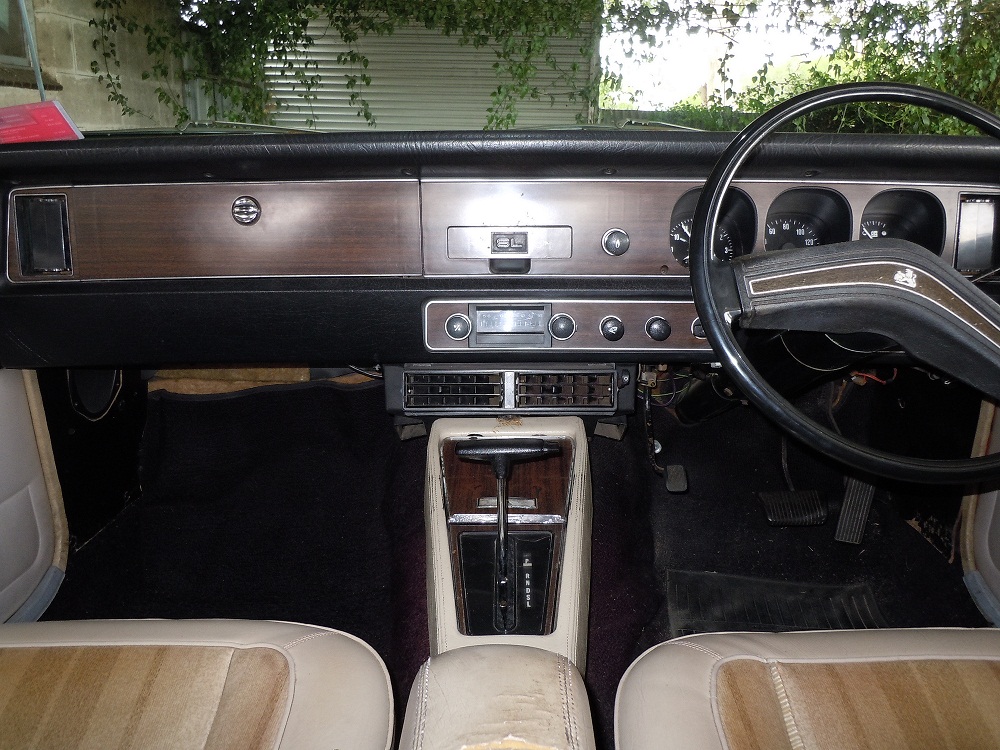

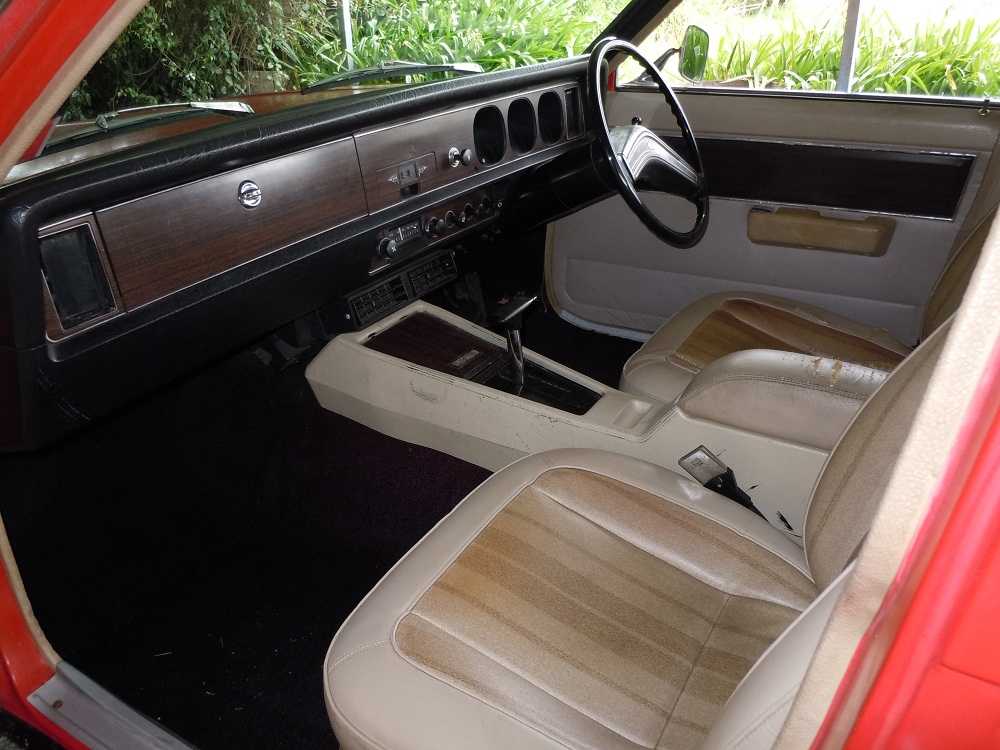

The thing to note is the Doeskin insert (Printed Stripe) has darkened considerably. Note the console top and armrests have also darkened through sunlight exposure.

#72 _KirstyAnne_

_KirstyAnne_
  • Guests

Posted 10 April 2012 - 02:09 PM

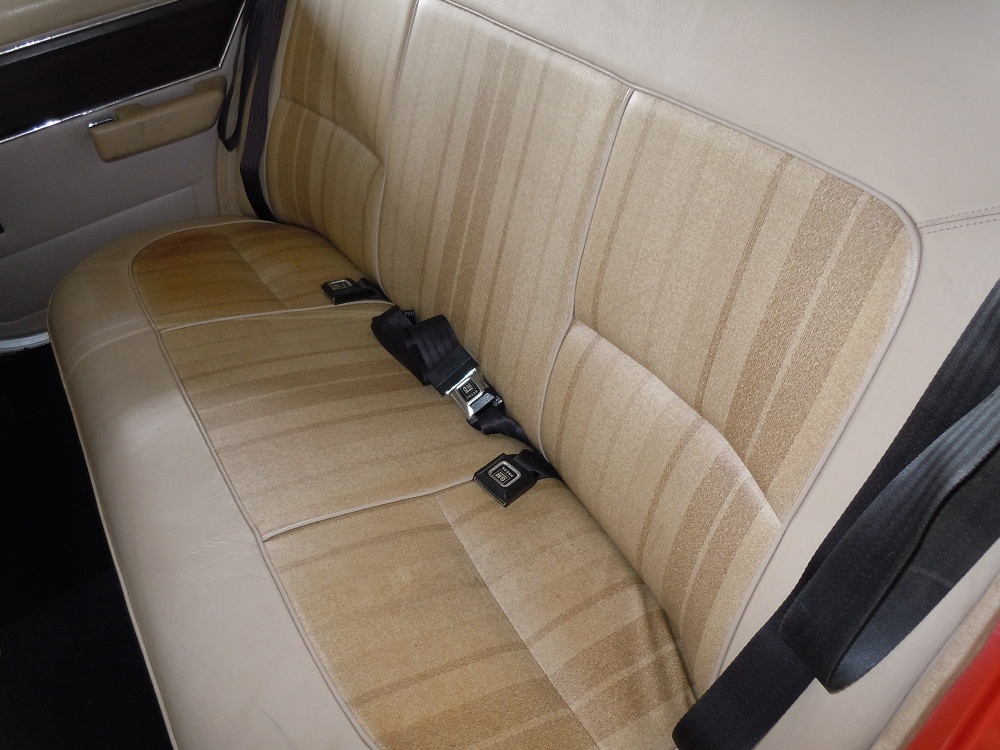

Here is the back seat
http://www.gmh-toran...-1333807869.jpg

its interesting you have noted that the cosole top and armrests have darkened.. I acutually thought the panel had faded instead!!! lol

I have not tried to clean them properly yet, I think that the seat covers that were on them have rubbed off abit onto them. So I'm hoping they clean up abit better.

#73 _Krizar_

_Krizar_
  • Guests

Posted 01 May 2012 - 09:01 PM

Anyone know anything about the trim code 1843-49R? It's in my 72' SL if that helps.
Trying to hunt down some fabric for some retrimming on a few small parts (top of door trims, top of back seat etc)
I just ordered Torana Tough so I'm hoping that has some info in it.

Any help is appreciated.

#74 _KirstyAnne_

_KirstyAnne_
  • Guests

Posted 08 May 2012 - 06:50 PM

Anyone know anything about the trim code 1843-49R? It's in my 72' SL if that helps.
Trying to hunt down some fabric for some retrimming on a few small parts (top of door trims, top of back seat etc)
I just ordered Torana Tough so I'm hoping that has some info in it.

Any help is appreciated.

The Torana Tough book is Great!!! good luck with finding your trim! i am having trouble finding mine :/

The thing to note is the Doeskin insert (Printed Stripe) has darkened considerably. Note the console top and armrests have also darkened through sunlight exposure.

Thanks, I am still trying to find some new trim for my seats :/

#75 _Krizar_

_Krizar_
  • Guests

Posted 09 May 2012 - 07:35 PM

Got the book in today's mail, and boy was I in for a treat.
Superb stuff, really well researched.

Found out that my trim is Antique Brown which is also available in the HQ.
Now just to hunt down a trimmer that's got some in stock, also some matching colour pinchwelds...the search continues
