mikes 304 LH

Started by _LH mike_ , Sep 07 2013 06:29 PM

  • Please log in to reply
67 replies to this topic

#51 Bigfella237

Bigfella237

    Socially Distant

  • Members
  • PipPipPipPipPipPipPip
  • 4,396 posts
  • Name:Andrew
  • Location:Far South Coast of NSW
  • Car:(s) not as many as I'd like but more than I've got space for!
  • Joined: 31-October 14

Posted 16 November 2015 - 05:19 PM

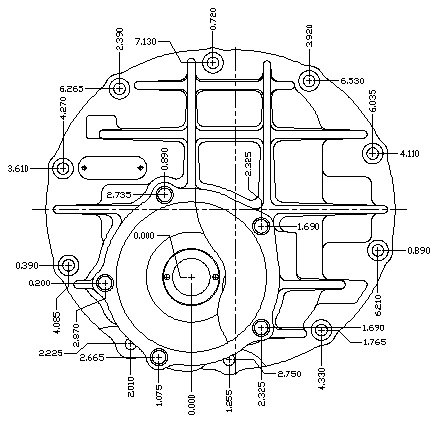

I knew I had a picture somewhere...





#52 _LH mike_

_LH mike_
  • Guests

Posted 18 November 2015 - 06:39 PM

thanks for the explanation. that makes sense. with the wheels on one sits inside the guard and the other is flush so maybe have to get one side shortened again.

I don't have a driveshaft yet (or diff head) to check clearances


#53 Bigfella237

Bigfella237

    Socially Distant

  • Members
  • PipPipPipPipPipPipPip
  • 4,396 posts
  • Name:Andrew
  • Location:Far South Coast of NSW
  • Car:(s) not as many as I'd like but more than I've got space for!
  • Joined: 31-October 14

Posted 18 November 2015 - 07:04 PM

It's gonna be difficult to judge with the diff just hanging like that, you really need to assume that the diff will 'self-centre' once everything is back together and on the road.



(yeah I know... assumption is the mother of all frOckups)


#54 _LH mike_

_LH mike_
  • Guests

Posted 18 March 2016 - 04:57 PM

Been spending a tonne of time in the garage lately.

Front wheels arrived. 15x7 with 4.5bs. 195/50 t1r's

Got the wiring in and motor running. Just need to tidy the wiring up

Overflow bottle installed and put in a window washer set up as it had been removed

Alloy radiator in. Have fan mounted but no pics

Hidden all the wiring for the lights etc down inside the drivers side guard

Rear floor sandblasted and undersealed. standard tank painted.

Bosch 040 fuel pump with 3/8 alloy line

Started putting the interior back in.  Have installed new underfelt

Im a bit further down the road with it but this is where the pics are up to.




#55 UCgazman

UCgazman

    UC's FTW!

  • Members
  • PipPipPipPipPip
  • 1,343 posts
  • Name:Garth
  • Location:Perth
  • Car:UC S̶u̶n̶b̶i̶r̶d̶ 5000!
  • Joined: 04-August 11

Posted 18 March 2016 - 06:01 PM

Standard tank fuel gauge senders are earthed through the tank straps so you might have issues with your fuel gauge if there's paint under them. Looking good otherwise :spoton:


#56 _LH mike_

_LH mike_
  • Guests

Posted 18 March 2016 - 08:28 PM

Thanks, ill keep that in mind. I don't have much gas in it to move the needle so will find out soon.


#57 _LH mike_

_LH mike_
  • Guests

Posted 27 October 2016 - 05:50 PM

Attached File  13680531_10154422151296177_2253858645382968270_n.jpg   67.67K   5 downloads

Attached File  13692486_10154422151756177_284063569137398669_n.jpg   105.83K   6 downloadsAttached File  13607010_10154422151336177_5155666584351595010_n.jpg   103.08K   5 downloadsAttached File  13620892_10154422151511177_3626371574699546808_n.jpg   109.5K   7 downloadsAttached File  13645081_10154422151646177_1072551404896394154_n.jpg   90.59K   5 downloadsAttached File  14079540_10154555630146177_1673735000740113271_n.jpg   81.47K   5 downloadsAttached File  13692597_10154422151651177_6881385747998488350_n.jpg   121.5K   5 downloadsAttached File  13769448_10154454426381177_1174274829777652737_n.jpg   76.39K   7 downloadsAttached File  14117719_10154555630166177_4240960629688525800_n.jpg   85.17K   6 downloadsAttached File  14051820_10154537386366177_5553425346627876090_n.jpg   61.32K   5 downloadsAttached File  14202743_10154555630191177_8141717581578359789_n.jpg   57.9K   8 downloads


#58 _LS1 Taxi_

_LS1 Taxi_
  • Guests

Posted 27 October 2016 - 05:54 PM

Looking good!

Have you booked it in for the nationals??!

#59 _LH mike_

_LH mike_
  • Guests

Posted 27 October 2016 - 06:03 PM

Got the rest of the interior back in. Have a momo steering wheel now , looks a bit out of place with the origional dash.

Bought an r31 diff that had already had the 5 stud conversion done. its 5x114 unfortunatly but still works with my wheels. Turns out the pinion had a chipped tooth so had a vl 3.45 installed . new brake discs and reco calipers. Monroe shocks and compressed springs

New 3inch driveshaft

Rear wheels arrived. 15x8 with 4.5inch BS. 225/50 toyo tyres

Sent it off to a local shop called RSL automotive. Ronnie put flanges on the factory stainless headers and then run a 2 1/4 system to two flowmasters. He also finished up my gearbox crossmember.

Installed a VN booster with 1 inch master cylinder. Brakes are 95% complete.

From RSL it went to A1 automotive where its had the inlet manifold gaskit replaced, timing set, plugs, changed fuel pump to a rb30(saved running a pressure reg) and a set of injectors and is now running mint!!!

next on the list is to drop the motor out and fit up the clutch.



 Does anybody have any idea on what clutch cable to use with the Toyota w50 box?


#60 _LH mike_

_LH mike_
  • Guests

Posted 27 October 2016 - 06:07 PM

Looking good!

Have you booked it in for the nationals??!



Thanks, I'm guessing that's an aussie show? I'm on the wrong side of the ditch!


Attached File  14068166_10154555630221177_5350922287278361045_n.jpg   59.04K   6 downloads


#61 _LS1 Taxi_

_LS1 Taxi_
  • Guests

Posted 27 October 2016 - 06:07 PM

No boats in NZ? :lol:

In other news, use the UC Torana or early commodore clutch cable. A few threads on this forum detail it. I've done it a few times and it works well. Very nice and light setup.

#62 Heath

Heath

    I like cars.

  • Administrators
  • PipPipPipPipPipPipPip
  • 18,380 posts
  • Name:Heath
  • Location:Eastern Suburbs, Melbourne
  • Car:Heavily Modified UC Sunbird Hatchback
  • Joined: 07-November 05
Garage View Garage

Posted 02 November 2016 - 06:17 AM

"CC100" is the clutch cable (part number from Flexible Drive Agencies) that most people use, this is the full cable job from the UC, but depending on a number of geometries, you may need to space the sleeve to adjust the length to where you need it...

I don't know what the Toyota bellhousing end is like... or what your pedal is like (V8 Commodore style, or 6cyl Torana geometry etc.)

#63 _LH mike_

_LH mike_
  • Guests

Posted 25 January 2018 - 06:21 PM

Had the exhaust finished then had to add some bends to bring it out behind the wheels

Attached File  IMG_8247.JPG   183.14K   6 downloads



Off to the paint shop. Had the sills and from the guards forward painted to match

Attached File  IMG_9679.JPG   158.73K   5 downloads



Attached File  IMG_0435.JPG   233.95K   5 downloads








#64 _LH mike_

_LH mike_
  • Guests

Posted 25 January 2018 - 06:32 PM

Got the car all legal on December 22, just in time for christmas!

Just ticked over 16 years of ownership too. Still plenty to do but just enjoying being able to drive it for the time being.



Attached File  26219831_10156116952871177_4155100061277440835_n.jpg   82.85K   5 downloads



Attached File  26169146_10156116953136177_866181528589093105_n.jpg   117.47K   7 downloads



Attached File  26169678_10156116953071177_5520982324661557556_n.jpg   78.46K   6 downloads


#65 HIBERN8

HIBERN8

    Forum Member

  • Members
  • PipPipPip
  • 131 posts
  • Name:Mark
  • Location:SA
  • Car:1974 LH S
  • Joined: 05-July 12

Posted 25 January 2018 - 07:21 PM

Looks sweet! Nice colour and love the wheels. Enjoy!

#66 koalasprint

koalasprint

    Forum Fan

  • Members
  • PipPipPipPip
  • 297 posts
  • Name:Steve
  • Location:Melbourne
  • Car:LX SS Hatch
  • Joined: 30-April 10

Posted 31 January 2018 - 09:53 AM

Agreed nice!

Edited by koalasprint, 31 January 2018 - 09:55 AM.

#67 _LH mike_

_LH mike_
  • Guests

Posted 11 September 2019 - 05:52 PM

The car has been great fun having on the road. Have been chipping away changing things up while still having fun.
Have had the lifters replaced and exhaust changed to go over the gearbox crossmember instead of under.
Installed some Speedbut guages and new front bumper, door handles and mirrors.

Attached Files


#68 Redslur

Redslur

    Has been Torana owner

  • Members
  • PipPipPipPipPipPip
  • 3,536 posts
  • Name:Gerry
  • Location:Canberra
  • Car:HQ GTS Replica 350.
  • Joined: 08-November 05

Posted 12 September 2019 - 12:07 PM

Geez I remember when my second torry was that low. I put stress cracks all through the firewall LOL. Looks tuff as though :-)
