I've seen Triangle pieces of 3mm plate welded inside the little Torana on the floor, horizontally,

and the vertical beams to the floor, everywhere where two frames meet on a Drag Car. Dave I


#27 warrenm

warrenm

    Forum Fixture

  • Members
  • PipPipPipPipPip
  • 2,117 posts
  • Location:Central West NSW
  • Car:1972 LJ Torana
  • Joined: 08-November 05
Garage View Garage

Posted 03 April 2014 - 11:02 PM

No cage & no chassis kit. I did stitch weld the chassis rails to floor & the door & window openings which may have helped. Still registered & a complete car, only drop the exhaust & fit the slicks for the track. 12.51@108mph out of the poor old 202.


#28 N/A-PWR

N/A-PWR

    CABIN ENGINE CONTROLS GALORE

  • Members
  • PipPipPipPipPipPipPip
  • 9,636 posts
  • Name:Dave I
  • Location:Wooroloo, 65km's East of Perth
  • Car:'1969' LC RAT TORANA
  • Joined: 08-December 12

Posted 03 April 2014 - 11:15 PM

A very amazing Torana you have there Warren


#29 _Tubo308_

_Tubo308_
  • Guests

Posted 04 April 2014 - 06:41 AM

No cage & no chassis kit. I did stitch weld the chassis rails to floor & the door & window openings which may have helped. Still registered & a complete car, only drop the exhaust & fit
thehttps://cache.gmh-to...zps1a73a9f0.jpg slicks for the track. 12.51@108mph
out of the poor old 202.

Holy crap you must have some serious work to
that 202 or it's on the giggle to lift those wheels. Excellent work. I've got a efi 304 with a fair cam in mine. It's been in there for around 15 years driven when ever I can every weekend fully
engineered as an 8. I have not chassie kit and
the car is not twisted yet, well i think its not. But Im make a kit now too I think it's time.

Edited by Tubo308, 04 April 2014 - 06:45 AM.

#30 Davis

Davis

    Forum Fan

  • Members
  • PipPipPipPip
  • 343 posts
  • Name:Drew
  • Location:.
  • Car:LC 2 door
  • Joined: 26-October 13

Posted 04 April 2014 - 09:25 AM

http://www.gumtree.c...s-ad/1041336268

Here's one for sale on gumtree, a couple different angles...

Cheers

#31 madtoranajzedded

madtoranajzedded

    Sir ask alot

  • Members
  • PipPipPipPipPipPip
  • 2,893 posts
  • Name:Maz
  • Location:Southern Tasmania
  • Car:72 LJ SL SEDAN.
  • Joined: 30-September 13

Posted 04 April 2014 - 11:02 AM

its good to see that your lj isnt molested in any form warren.keen to see pics of the stitch welds in dr and window openings buddy.never seen them welded up in that area.







Maz


#32 N/A-PWR

N/A-PWR

    CABIN ENGINE CONTROLS GALORE

  • Members
  • PipPipPipPipPipPipPip
  • 9,636 posts
  • Name:Dave I
  • Location:Wooroloo, 65km's East of Perth
  • Car:'1969' LC RAT TORANA
  • Joined: 08-December 12

Posted 04 April 2014 - 11:06 AM

http://www.gumtree.c...s-ad/1041336268

Here's one for sale on gumtree, a couple different angles...

Cheers

Hi Andrew,

Do you think the resale price is higher than the Original sale price, good markup if so. Dave I



Nice and clean unit though


#33 Davis

Davis

    Forum Fan

  • Members
  • PipPipPipPip
  • 343 posts
  • Name:Drew
  • Location:.
  • Car:LC 2 door
  • Joined: 26-October 13

Posted 04 April 2014 - 06:49 PM

Hi Andrew,
Do you think the resale price is higher than the Original sale price, good markup if so. Dave INice and clean unit though


I think they were $800 when you could buy them new... So this bloke is definitely cashing up

#34 N/A-PWR

N/A-PWR

    CABIN ENGINE CONTROLS GALORE

  • Members
  • PipPipPipPipPipPipPip
  • 9,636 posts
  • Name:Dave I
  • Location:Wooroloo, 65km's East of Perth
  • Car:'1969' LC RAT TORANA
  • Joined: 08-December 12

Posted 04 April 2014 - 06:59 PM

Gee's, I could never mark up for NOS stuff



worst, is getting a seventh of what I had payed for them


#35 Collo

Collo

    ( . Y . )

  • Members
  • PipPipPipPipPipPipPip
  • 114,647 posts
  • Location:Newcastle...Home of me.
  • Car:A Black POS
  • Joined: 29-February 08

Posted 04 April 2014 - 07:07 PM

CRS website price is $1450...


#36 WhaleOilBeefHooked

WhaleOilBeefHooked

    Lord Humungus The Ayatolla of Rock N Rolla.

  • Members
  • PipPipPipPipPip
  • 1,671 posts
  • Name:Andrew
  • Location:Sydney
  • Car:LJ GTR
  • Joined: 06-July 09

Posted 04 April 2014 - 09:27 PM

So at a Gorilla it's fair price for something New in condition, Be prepared to do some "extra" work to fit it in there and once that's correctly taken care of = Tis a cheap "off the shelf" upgrade......


Edited by WhaleOilBeefHooked, 04 April 2014 - 09:28 PM.

#37 warrenm

warrenm

    Forum Fixture

  • Members
  • PipPipPipPipPip
  • 2,117 posts
  • Location:Central West NSW
  • Car:1972 LJ Torana
  • Joined: 08-November 05
Garage View Garage

Posted 04 April 2014 - 10:13 PM

Holy crap you must have some serious work to
that 202 or it's on the giggle to lift those wheels. Excellent work. I've got a efi 304 with a fair cam in mine. It's been in there for around 15 years driven when ever I can every weekend fully
engineered as an 8. I have not chassie kit and
the car is not twisted yet, well i think its not. But Im make a kit now too I think it's time.

No giggle gas either, naturally aspirated.


#38 _v8fazz_

_v8fazz_
  • Guests

Posted 16 January 2016 - 12:13 AM

Im digging up a very old thread rather than start a new one -



I'll hopefully be taking my LC off the road in the next month or two to begin a V8 conversion with VN running gear - engine, 4 speed auto, and diff.

Rather than using the CRS chassis kit an engineering place is going to fabricate and weld in some chassis rails instead, but I was thinking it would still be a good idea to copy some of the smaller parts from the CRS kit.



Another forum member was kind enough to send me a copy of the install instructions but as you all know they were written by a 3 year old and are not very helpful.

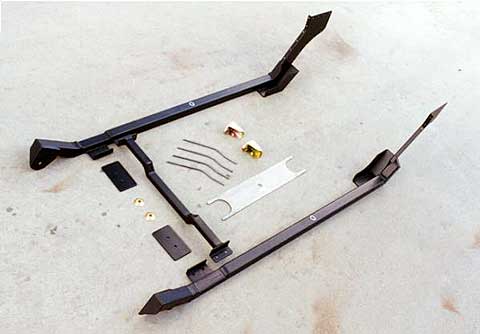

Can anyone please confirm exactly what the 2 small plates are (purple arrow) and what they do / where they go?



And also the 4 small rods (orange arrow) which are meant to be wishbone strengthening rods???

Any info or pics would be great! Thanks in advance.



#39 N/A-PWR

N/A-PWR

    CABIN ENGINE CONTROLS GALORE

  • Members
  • PipPipPipPipPipPipPip
  • 9,636 posts
  • Name:Dave I
  • Location:Wooroloo, 65km's East of Perth
  • Car:'1969' LC RAT TORANA
  • Joined: 08-December 12

Posted 16 January 2016 - 02:05 AM

Hi Fazz,



the description at the website, doesn't have any reference either, hmm.  :furious: :-



http://www.rodshop.c...hassis-kit.html



but the angle of those wires would fit the wishbone lower angles by the looks.


#40 ls2lxhatch

ls2lxhatch

  • Members
  • PipPipPipPipPipPipPip
  • 5,332 posts
  • Location:Perth
  • Car:LX Hatch
  • Joined: 29-May 06

Posted 16 January 2016 - 03:04 AM

I suspect the two small plates are fitted inside the car at the rear. Then there are two bolts either side at the rear that go through the rear cross brace, through the plates at the rear of the chassis kit, though the body then through the plates inside the car.

This picture from the torviki shows the plates in the general area.




You will find some more pictures in these links

http://www.gmh-toran...rs-chassis-kit/

http://www.fastlane....Kit-9-Inch.aspx



The LX kit uses a similar setup with the plates at the rear. I have the LX chassis kit in on my hatch.



Edited by ls2lxhatch, 16 January 2016 - 03:10 AM.

#41 ls2lxhatch

ls2lxhatch

  • Members
  • PipPipPipPipPipPipPip
  • 5,332 posts
  • Location:Perth
  • Car:LX Hatch
  • Joined: 29-May 06

Posted 16 January 2016 - 03:36 AM

The rods are to strengthen the lower wishbone, they are welded on both sides of the lower wishbone.


#42 _scott304lj_

_scott304lj_
  • Guests

Posted 16 January 2016 - 08:45 AM

Hi I'm in the process of doing the same conversion you are thinking of.
The plates sit in the rear foot Wells and are effectively big washers with two bolts that go through to the cross member that goes from one rail to the other, not the gearbox cross member but the one that comes with the kit.
The rods are as you say wishbone strengthening rods and are welded in to the return fold front and back of the wishbone. If I can figure out how to post pics via mobile I will put some up
Scott

#43 _v8fazz_

_v8fazz_
  • Guests

Posted 16 January 2016 - 09:14 AM

Awesome guys, thanks for the replies.

So I wont need the plates since I'll be getting custom chassis rails, but the wishbone rods might not be a bad idea.



Pics would be great Scott if you get the chance.

Cheers.
