Engine number pad mask off.

Started by _sunburst73-xu1_ , Oct 31 2014 06:11 AM

Please log in to reply

15 replies to this topic

#1 _sunburst73-xu1_

Guests

Posted 31 October 2014 - 06:11 AM

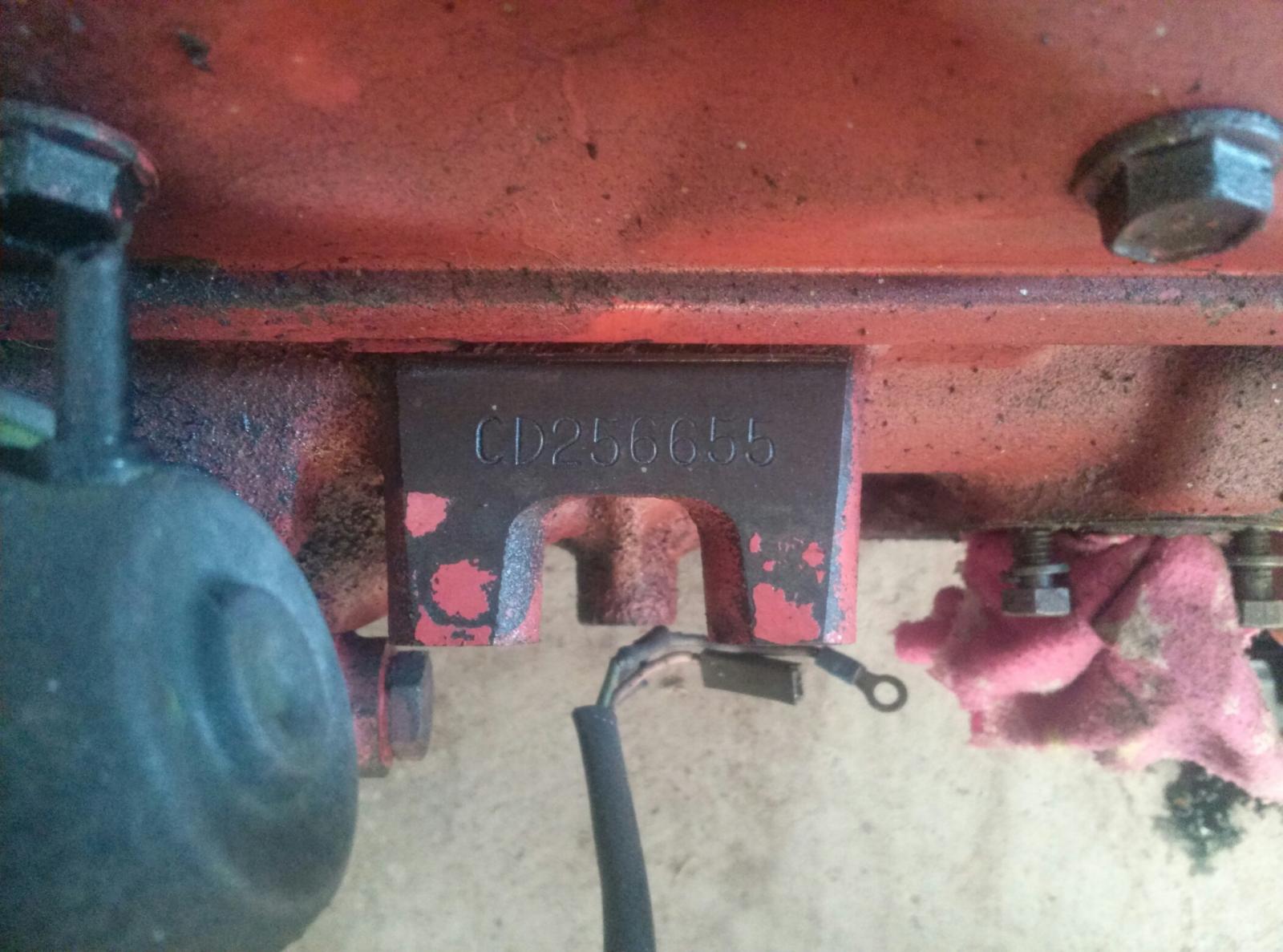

Been looking and some 6 cylinder red motor blocks I have to see and the engine number pads weather they have paint on them or just raw cast when painted from the factory.

Some have no paint at all and some have half the pad painted like it was masked off and others are painted but assuming that they have been rebuilt.

Just wanting to know if there was any formality back in the day or it was just willy nilly as thousands of these motors cruised through the production line.

The pic is an example of one, any info would be appreciated.

cheers Dane

Attached Files

engine no. paint.jpg 186.98K 11 downloads

Back to top

#2 _sunburst73-xu1_

Guests

Posted 28 November 2014 - 05:13 PM

OK,I have come across some more original un rebuild blocks but are all from Adelaide built cars with the same paint on the edge of the pad.

I have not seen any Brisbane built cars tho.

Can anyone help???

Back to top

#3 S pack

Scrivet Counter

Members
15,686 posts

Name:Dave
Location:Luggage Point
Car:73 LJ
Joined: 25-January 10

Posted 28 November 2014 - 06:15 PM

Dane, all engines produced Melbourne and lucky dip as to which engines went to Adelaide and which went to Brisbane so there shouldn't be any difference.

Cheers

Dave.

Back to top

#4 _macdou_

Guests

Posted 28 November 2014 - 06:39 PM

A bit earlier than the 202

Attached Files

image.jpg 38.37K 25 downloads

Back to top

#5 yel327

Oh My, Don't you post alot

Members
13,593 posts

Joined: 10-February 08

Posted 28 November 2014 - 07:11 PM

They weren't too careful, you'll find if there was a mask it often would have fallen off. I've seen a few HK body tags like that, where the mask has come off and they have red lead all over them or black. The mask could be as simple as a piece of magnetic backed material that they drop over the number pad.

In fact in concours judging especially on V8's if you don't have overspray everywhere you should be losing points!

Back to top

#6 _sunburst73-xu1_

Guests

Posted 29 November 2014 - 06:39 AM

Thanks for the feedback, I know it would have been a slap happy process even with the stamping of the numbers as well.

I think you've answered the question Dave.

Ken interesting to see a silver oil filler cap on that motor in the pic.

Byron with the photos I have seen and got there would of been over spay everywhere, Spark plugs, fuel pump, etc,etc.

I the only thing I have really worried about having over spray on is the bell housing at this stage.

cheers Dane

Back to top

#7 jd lj

Forum Fixture

Members
2,111 posts

Name:James D
Location:in the shed
Car:LJ SVO
Joined: 03-December 10

Posted 29 November 2014 - 06:59 AM

I thought the same thing about the oil cap, I thought the silver one's started later, but then some other things in the picture distracted me.

It's interesting that you need to do a rough job to get it correct ie. overspray everywhere.
What parts were fitted to the engine at the time of painting?

Back to top

#8 yel327

Oh My, Don't you post alot

Members
13,593 posts

Joined: 10-February 08

Posted 29 November 2014 - 07:32 AM

Most stuff was on there. I have had the process described to me for the imported SBC engines. The engines were complete enough to run on gas, and had flywheel or flex, starter, bellhousing and clutch for manual. They fitted a device that fed gas into where the carb goes. The dizzy was fitted and engine was run and timing set. A mark was placed on both the dizzy and the valley cover (on the SBC it was the valley cover), then dizzy was removed and hole sealed. Then the engine was painted afaik, paint dried and then crated up with its dizzy. Over here they were uncrated, dizzy added and external dress put on (alternator carby, fan etc). The local engines would be a similar process with minor variations.

Back to top

#9 71xu1

Dave

Members
1,274 posts

Location:Western Australia
Car:LC GTR XU1
Joined: 24-August 06

Posted 29 November 2014 - 12:05 PM

I am pretty sure the colour in the HD/R X2 in the picture oil filler cap and air filter are gold.

Back to top

#10 S pack

Scrivet Counter

Members
15,686 posts

Name:Dave
Location:Luggage Point
Car:73 LJ
Joined: 25-January 10

Posted 29 November 2014 - 01:28 PM

AFAIK

HD X2 Silver air cleaner and black oil breather cap.

HR X2 Gold air cleaner and gold oil breather cap.

The pic is a HR X2.

Back to top

#11 _macdou_

Guests

Posted 29 November 2014 - 02:03 PM

Picture is of a 1966 HR.

http://www.uniquecar...nicles_1966.htm

Anyhow the reason I posted it was it appears the engine number pad is painted red as there doesn't seem to be any cast areas around there...

Back to top

#12 yel327

Oh My, Don't you post alot

Members
13,593 posts

Joined: 10-February 08

Posted 29 November 2014 - 03:19 PM

That process may have varied along the way as stuff often did. If you look at a late 202 (black in VK or blue in WB) the number pad isn't even machined.
