GTR XU1 Distributor Font?

Started by _macdou_ , Mar 08 2015 09:14 PM

Next

Please log in to reply

26 replies to this topic

#1 _macdou_

Guests

Posted 08 March 2015 - 09:14 PM

Have a look at this one...how many versions of fonts were there, I don't recall seeing this version...

Attached Files

image.jpg 187.86K 6 downloads
image.jpg 223.83K 4 downloads

Back to top

#2 _macdou_

Guests

Posted 08 March 2015 - 09:19 PM

Two others...

Attached Files

image.jpg 59.94K 10 downloads
image.jpg 48.82K 5 downloads

Back to top

#3 Bazza

ǝɹnʇxıɟ ɯnɹoɟ

Members
4,295 posts

Location:Outer Melb West Vic
Car:ɐuɐɹoʇ
Joined: 11-November 05

Posted 08 March 2015 - 09:48 PM

Hi Ken

There are two fonts used. The most obvious differences are in the "2" "4" and "6". I have 11 photos of XU-1 dizzys divided pretty evenly between the 2 fonts.

Cheers

Bazza

Back to top

#4 _macdou_

Guests

Posted 08 March 2015 - 09:55 PM

Hi Ken

There are two fonts used. The most obvious differences are in the "2" "4" and "6". I have 11 photos of XU-1 dizzys divided pretty evenly between the 2 fonts.

Cheers

Bazza

Yeah Baz but the top one doesn't look anywhere near the other two on several levels....might be my eyes...

Back to top

#5 Bazza

ǝɹnʇxıɟ ɯnɹoɟ

Members
4,295 posts

Location:Outer Melb West Vic
Car:ɐuɐɹoʇ
Joined: 11-November 05

Posted 08 March 2015 - 10:23 PM

It seems to be par for the course. There are a few minor differences among my photos. Notice also that one of your photos has the vertical code on the right hand side of the numbers group. Usually this is on the left hand side of the group. Sometimes the "BOSCH Made in Australia" is on the other side of the body not above the numbers.

Cheers

Bazza

Back to top

#6 _macdou_

Guests

Posted 08 March 2015 - 10:25 PM

Ok off the the optometrist tomorrow....

Back to top

#7 _mikecatts_

Guests

Posted 09 March 2015 - 06:51 AM

the one on ebay ..The top pick..doenst look right.. Looks like he restamped over the old numbers..

Back to top

#8 _mikecatts_

Guests

Posted 09 March 2015 - 07:02 AM

now this is dodgy... Some people????


Back to top

#9 _macdou_

Guests

Posted 09 March 2015 - 06:58 PM

now this is dodgy... Some people????

Is that the other one on ebay?

Back to top

#10 _Skapinad_

Guests

Posted 09 March 2015 - 07:16 PM

Why is it dodgy ? Should be easy enough to pick a ground down housing...?

Back to top

#11 Bazza

ǝɹnʇxıɟ ɯnɹoɟ

Members
4,295 posts

Location:Outer Melb West Vic
Car:ɐuɐɹoʇ
Joined: 11-November 05

Posted 09 March 2015 - 08:50 PM

Why is it dodgy ? Should be easy enough to pick a ground down housing...?

And it wouldn't be the first digit ever stamped crooked by GMH or its suppliers. If the GMH Part Number is dodgy all the other ones would have to be also.

Cheers

Bazza

Back to top

#12 _mikecatts_

Guests

Posted 12 March 2015 - 03:31 AM

And it wouldn't be the first digit ever stamped crooked by GMH or its suppliers. If the GMH Part Number is dodgy all the other ones would have to be also.

Cheers

Bazza

Hi Guys.. so what your saying is that its correct with a blind man who stamped it???

Back to top

#13 Dr Terry

Technical + Numbers Guru + Moderator

Moderators
3,324 posts

Location:Eastwood (Sydney) NSW
Joined: 13-November 05

Posted 12 March 2015 - 05:53 AM

Have you ever seen the stamped numbers on the body ID plate on most FX/FJs ?

They look like they were done at the local kindergarten.

Dr Terry

Back to top

#14 Rockoz

Oh My, Don't you post alot

Members
4,021 posts

Name:Rob
Location:Cowra NSW
Joined: 21-September 08

Posted 12 March 2015 - 04:12 PM

Have a look at this one...how many versions of fonts were there, I don't recall seeing this version...

Looking at that it is probably ok.

Stamping on a curved surface wouldnt be easy or exact.

Would guess there were 2 or 3 stamp blocks to do the job.

The depth of the stamp is progressive.

The progressive depth shows up on one of the others, but not quite so deep.

Back to top

#15 _macdou_

Guests

Posted 12 March 2015 - 05:18 PM

Looking at that it is probably ok.
Stamping on a curved surface wouldnt be easy or exact.
Would guess there were 2 or 3 stamp blocks to do the job.
The depth of the stamp is progressive.
The progressive depth shows up on one of the others, but not quite so deep.

Looks like mr mint has engraved that one. Have a look at the second picture.

Back to top

#16 S pack

Scrivet Counter

Members
15,703 posts

Name:Dave
Location:Luggage Point
Car:73 LJ
Joined: 25-January 10

Posted 12 March 2015 - 06:11 PM

Looks like mr mint has engraved that one. Have a look at the second picture.

That's probably because of the corrosion pitting in the alloy.

Edited by S pack, 12 March 2015 - 06:13 PM.

Back to top

#17 _sunburst73-xu1_

Guests

Posted 17 March 2015 - 07:12 PM

Putting aside the fonts there's only one (pictured) that is suited to xu1 anyway going by the date codes.

I've also seen scorcher dissys with the same part number but dated a lot later to the xu1 era.

Edited by sunburst73-xu1, 17 March 2015 - 07:16 PM.

Back to top

#18 _macdou_

Guests

Posted 17 March 2015 - 07:28 PM

Putting aside the fonts there's only one (pictured) that is suited to xu1 anyway going by the date codes.
I've also seen scorcher dissys with the same part number but dated a lot later to the xu1 era.

Dane so are you saying XU1 dizzy's outside the XU1 manufacture dates are "replacement" XU1 distrubitors? Makes sense. Similar to some of the XU1 heads being spares etc...

Back to top

#19 S pack

Scrivet Counter

Members
15,703 posts

Name:Dave
Location:Luggage Point
Car:73 LJ
Joined: 25-January 10

Posted 17 March 2015 - 08:09 PM

Dane so are you saying XU1 dizzy's outside the XU1 manufacture dates are "replacement" XU1 distrubitors? Makes sense. Similar to some of the XU1 heads being spares etc...

Exactly what Dane is saying.

Sometime during the 1980's the original LJ XU1 distributor part number 2824083 was superseded to a VS prefixed part number.

Back to top

#20 Bazza

ǝɹnʇxıɟ ɯnɹoɟ

Members
4,295 posts

Location:Outer Melb West Vic
Car:ɐuɐɹoʇ
Joined: 11-November 05

Posted 17 March 2015 - 09:51 PM

Hi

Can some body explain how to interpret the date codes? I've never been able to work them out on Bosch distributors.

Cheers

Bazza

Back to top

#21 S pack

Scrivet Counter

Members
15,703 posts

Name:Dave
Location:Luggage Point
Car:73 LJ
Joined: 25-January 10

Posted 17 March 2015 - 09:57 PM

Bazza, read from left to right the 1st number is the year, 2nd & 3rd numbers are week of the year.

639 = 39th week of 1976 for one of the pictured XU1 distributors.

Correction 630 not 639.

30th week of 1976

Edited by S pack, 17 March 2015 - 10:05 PM.

Back to top

#22 S pack

Scrivet Counter

Members
15,703 posts

Name:Dave
Location:Luggage Point
Car:73 LJ
Joined: 25-January 10

Posted 17 March 2015 - 10:00 PM

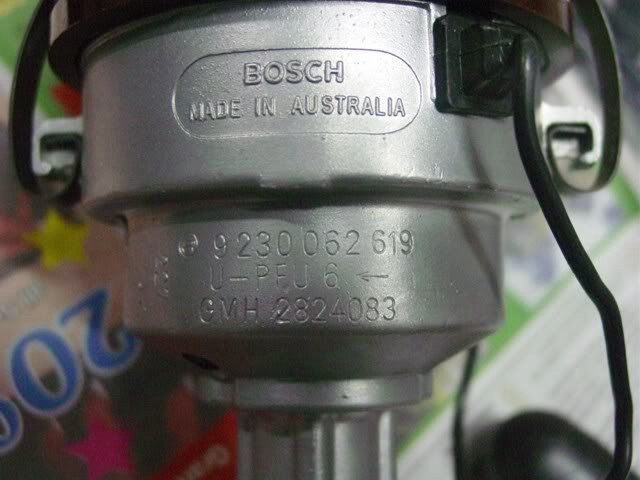

This one is 27th week of 1972.

Back to top

#23 Bazza

ǝɹnʇxıɟ ɯnɹoɟ

Members
4,295 posts

Location:Outer Melb West Vic
Car:ɐuɐɹoʇ
Joined: 11-November 05

Posted 17 March 2015 - 10:10 PM

Hi

That's what I always thought but numbers like 822 825 and 929 threw me. I would have thought that they would be selling generic Bosch with no GMH part number by then.

Cheers

Bazza
