Yep! Done! Thank you gentlemen! :spoton: That wasn't the only problem though, and this was probably the most significant????………………………..Bad earth at the switch panel!!!! Dammit!!!...……………..Made it hard to diagnose...………...But why would anyone swap the wires in the plug?



Last time I was there we "patched" the loom using the loom from the UC. The only thing that happened was it parked. :fool:



We set up a "test bench" and tested all the wiper motors and switches first thing to work out what was good and what was bad.



More pics for future reference......





Attached Files



#27 _LONA-CK_

_LONA-CK_
  • Guests

Posted 11 July 2018 - 09:07 AM

Hi rob

just read this thread and was not sure if you fellas new this or not, but I am sure I covered this some years ago,,, preslite and Lucas didn't mean LJ and LC

It was a Adelaide and Brisbane thing, Adelaide used the Lucas why Brisbane used the other.



Cheers gong


Edited by LONA-CK, 11 July 2018 - 09:08 AM.


#28 rodomo

rodomo

    To advertise here, call 13TORANA

  • Members
  • PipPipPipPipPipPipPip
  • 18,027 posts
  • Name:R - O - B Dammit!
  • Location:Way out west of Melbourne Awstraylya
  • Joined: 10-December 05

Posted 11 July 2018 - 11:46 AM

I did have a look around when this problem first arose but I couldn't find much. I do remember there being a thread though. You changed your user name somewhere along the line to I think?

#29 _LONA-CK_

_LONA-CK_
  • Guests

Posted 11 July 2018 - 06:09 PM

Yes when I got the lone Orange  CK Bathurst car I change to LONA CK



Cheers gong



#30 Indy Orange

Indy Orange

    Lotsa Posts!

  • Members
  • PipPipPipPipPipPip
  • 2,903 posts
  • Name:Paul
  • Location:Australia
  • Joined: 03-July 09

Posted 11 August 2018 - 05:41 PM

Ok guys,this is my wiper motor and connector,I'm wanting to know which wire goes where,the wiper motor terminals are labeled,SW1 ,SW2,SW3 and Bat.imwanting to know which coloured wire goes where ,thanks Paul.

Attached Files



#31 Indy Orange

Indy Orange

    Lotsa Posts!

  • Members
  • PipPipPipPipPipPip
  • 2,903 posts
  • Name:Paul
  • Location:Australia
  • Joined: 03-July 09

Posted 11 August 2018 - 05:43 PM

Also if any of you have any tips on how you get the interior light wiring up the pillar ? Would be greatly appreciated.Thanks Paul.

#32 S pack

S pack

    Scrivet Counter

  • Members
  • PipPipPipPipPipPipPip
  • 15,668 posts
  • Name:Dave
  • Location:Luggage Point
  • Car:73 LJ
  • Joined: 25-January 10

Posted 11 August 2018 - 06:19 PM

Ok guys,this is my wiper motor and connector,I'm wanting to know which wire goes where,the wiper motor terminals are labeled,SW1 ,SW2,SW3 and Bat.imwanting to know which coloured wire goes where ,thanks Paul.

Your wiring plug is configured correctly Paul. Just plug & play.

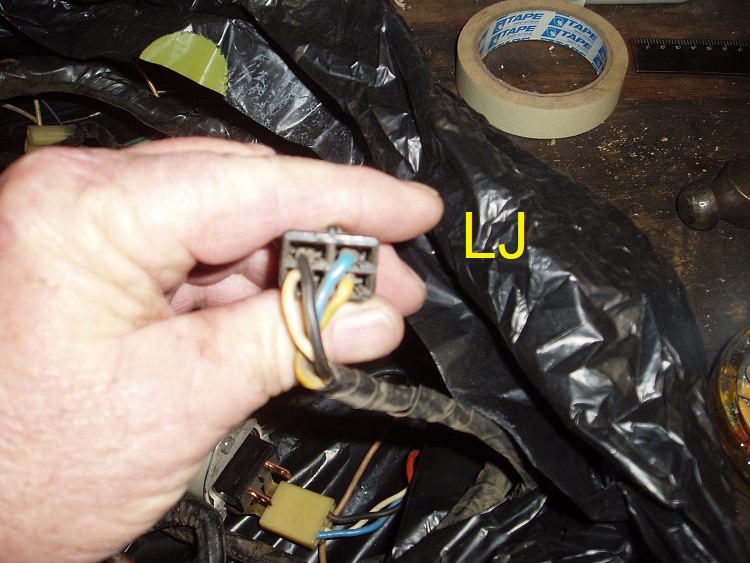

This pic of R-O-B's LJ wiper wiring connector is also correct.




Also if any of you have any tips on how you get the interior light wiring up the pillar ? Would be greatly appreciated.Thanks Paul.

You may need to insert a draw wire or similar device up the pillar first and tape the wires to that to pull them up.



#33 jd lj

jd lj

    Forum Fixture

  • Members
  • PipPipPipPipPip
  • 2,109 posts
  • Name:James D
  • Location:in the shed
  • Car:LJ SVO
  • Joined: 03-December 10

Posted 12 August 2018 - 07:28 AM

When you put a new globe in the interior light I saw recently that in that type of globe you can get them in LED's in different combinations of of little light diodes so potentially you can make it bright enough to actually see something.

I was wondering recently about the switches for our wiper motors and the lack of speed that the wipers move at. Is this due to the wear and tear of any components or is this how they always were. If the switch lets you choose from slow or slower then would a different switch supply the wiper motor with more power so that it'd operate at respectable speeds. The switch is basically a two stage potentiometer I assume???

#34 VDO

VDO

    Forum Member

  • Members
  • PipPipPip
  • 187 posts
  • Name:Chris Curtis
  • Location:Brisbane QLD
  • Joined: 17-September 14

Posted 12 August 2018 - 09:58 AM

When you put a new globe in the interior light I saw recently that in that type of globe you can get them in LED's in different combinations of of little light diodes so potentially you can make it bright enough to actually see something.

I was wondering recently about the switches for our wiper motors and the lack of speed that the wipers move at. Is this due to the wear and tear of any components or is this how they always were. If the switch lets you choose from slow or slower then would a different switch supply the wiper motor with more power so that it'd operate at respectable speeds. The switch is basically a two stage potentiometer I assume???



No the switch isn't a potentiometer, it's just a switch that selects which brushes in the motor will run the armature at different speeds, based on the position of the brushes.



The motor needs rebuilding to get it's speed back to where it used to be.

Armature machined and linished, brushes checked and replaced, the magnets re-magnetized, the gears and bushes cleaned of old grease, bearings etc cleaned and polished for smoother movement, and final assembly with the right tolerances adjusted.



Power is 12.5v, 13.8v, or 14.2v and that can't be increased by a grounding switch.



Rebuild.



#35 RallyRed

RallyRed

    Oh My, Don't you post alot

  • Members
  • PipPipPipPipPipPipPip
  • 8,081 posts
  • Name:Col
  • Location:NSW
  • Car:LC GTR etc
  • Joined: 02-October 11

Posted 12 August 2018 - 01:21 PM

No the switch isn't a potentiometer, it's just a switch that selects which brushes in the motor will run the armature at different speeds, based on the position of the brushes.



The motor needs rebuilding to get it's speed back to where it used to be.

Armature machined and linished, brushes checked and replaced, the magnets re-magnetized, the gears and bushes cleaned of old grease, bearings etc cleaned and polished for smoother movement, and final assembly with the right tolerances adjusted.



Power is 12.5v, 13.8v, or 14.2v and that can't be increased by a grounding switch.



Rebuild.

Good info mate.

Have a slow set of wipers here.

Always been ""gunna"" address this,but understand getting the motor out/ disconnecting the linkages is a drama?



#36 VDO

VDO

    Forum Member

  • Members
  • PipPipPip
  • 187 posts
  • Name:Chris Curtis
  • Location:Brisbane QLD
  • Joined: 17-September 14

Posted 12 August 2018 - 01:45 PM

Good info mate.

Have a slow set of wipers here.

Always been ""gunna"" address this,but understand getting the motor out/ disconnecting the linkages is a drama?

Don't know about that, but I've rebuilt countless wiper motors.



#37 I'm a Red Motor fiend

I'm a Red Motor fiend

    Forum Fixture

  • Members
  • PipPipPipPipPip
  • 762 posts
  • Name:Adam
  • Location:Nairne SA
  • Car:LJ 4 door, LC GTR
  • Joined: 04-January 16
Garage View Garage

Posted 13 August 2018 - 06:42 AM

Col, the issue is having to remove the heater box to access. The rest is easy.....

#38 RallyRed

RallyRed

    Oh My, Don't you post alot

  • Members
  • PipPipPipPipPipPipPip
  • 8,081 posts
  • Name:Col
  • Location:NSW
  • Car:LC GTR etc
  • Joined: 02-October 11

Posted 13 August 2018 - 11:51 AM

Col, the issue is having to remove the heater box to access. The rest is easy.....

Ta mate....I knew there was a drama..   Reckon I'll delay it...
