Hi all,



I'm restoring LJ Gtr 7/72 Brisbane car. Can anyone provide me with images of battery tray location and what it actually looks like, also was this car fitted with bosch or lucas alternator.



Thank you

[S pack]

Here's one I prepared 10 years ago.



 CIMG1248 mod.jpg   173.86K   15 downloads

 CIMG1249 mod.jpg   93.7K   10 downloads

 CIMG1250 mod.jpg   303.62K   9 downloads

 CIMG1251 mod.jpg   269.67K   7 downloads

 CIMG1252 mod.jpg   279.76K   9 downloads

 CIMG1253 mod.jpg   171.08K   9 downloads

 CIMG1254 mod.jpg   111.34K   6 downloads





 CIMG1255 mod.jpg   294.21K   11 downloads

 CIMG1256 mod.jpg   311.13K   9 downloads

[MFM]

Excellent attention to detail Dave. Very helpful information to assist everyone. Fundamentally that's what this forum is and should be all about, being a valuable, accurate, detailed and unique source of information.

[Strat]

Thank you very much Dave, this is exactly what I was looking for. Appreciate your help.

Would you happen to know if my car was fitted with lucas or bosch alternator.

Thanks Nick

[Indy Orange]

If it's a 7th month 72 I would say a Bosch ,the early ones tend to be Lucas.

Edited by Indy Orange, 27 May 2021 - 11:03 PM.

[Strat]

Thanks for your help everyone!

[S pack]

If it's a 7th month 72 I would say a Bosch ,the early ones tend to be Lucas.

Is your wiring harness factory original and is it set up to suit internal or an external regulator?


[Indy Orange]

Who’s mine Spac?What differences do the harnesses have between external and internal regulators?

Edited by Indy Orange, 07 June 2021 - 10:30 PM.

[S pack]

Who’s mine Spac?

Apologies Paul, I have accidentally quoted your post.



I meant to quote the OP's post, as follows.



Would you happen to know if my car was fitted with lucas or bosch alternator.

Thanks Nick



Is your wiring harness factory original and is it set up to suit internal or an external regulator?










[Indy Orange]

Geez ya had me worried there!

[S pack]

Who’s mine Spac?What differences do the harnesses have between external and internal regulators?

On an LC? None. LC all came with external reg alternators. Internal reg alternators were introduced into LJ production around mid 1972.


[Indy Orange]

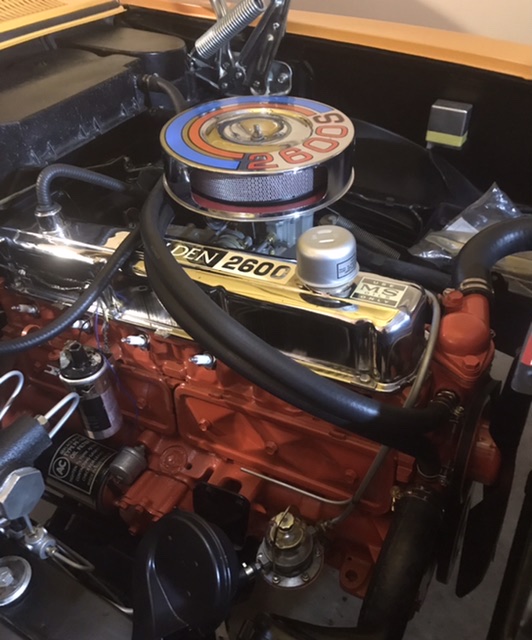

Hope I have the correct alternator then, what’s the differences Dave?

Attached Files

•  A3BF2F48-D08A-4390-AE8E-8D9DFEAC4C45.jpeg   85.47K   3 downloads
•  D02CB8BE-A523-4CEA-9947-175F4A2D46F7.jpeg   103.99K   3 downloads

Edited by Indy Orange, 07 June 2021 - 10:51 PM.

[S pack]



Your is external reg Paul, the silver box with the yellow tape.

[Indy Orange]

So no difference to wiring or alternator, just the regulator.Ta mate!

[grumpy xu1]

On a 7/72 Brisbane built car, from the factory I'd say bosch external regulator would be correct.

[Strat]

Thank you all

[Strat]

Here's one I prepared 10 years ago.



CIMG1248 mod.jpg

CIMG1249 mod.jpg

CIMG1250 mod.jpg

CIMG1251 mod.jpg

CIMG1252 mod.jpg

CIMG1253 mod.jpg

CIMG1254 mod.jpg

Hi Dave, I'm in the process of installing battery tray identical to the one in your images. I'm going to fit triple 175 CD carburetors to the 202motor , will the carburetor air cleaners hit battery tray/battery?

Thanks Nick





CIMG1255 mod.jpg

CIMG1256 mod.jpg

[S pack]

Nick, if you install a big battery tray in the original std position as per the dimensions shown in my pics the battery will foul the triple carbs. You need to install the tray so it is in a similar position to the smaller XU-1 battery tray, the air cleaner housing on the front carb will just miss the battery and the bonnet should still close.

Edited by S pack, 30 November 2021 - 06:37 PM.

[Strat]

Thank you Dave
